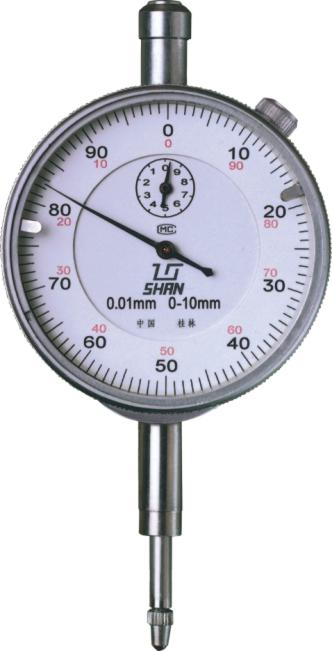

□ DIAL INDICATORS 513
|
 |
 |
Features:
• Peach shaped mechanical body.
• Adjustable steel dial ring.
• Anti-dirty cap rises while lifting measuring spindle.
•
With adjustable tolerance markers.
• With dial locking screw
|
□ DIAL INDICATORS 513D
|
| |
|
Features:
•Design features identical to 513, but
Jeweled and shock proof via sleeve which floats over spindle.
|
|
|
Item No.
|
Range
(mm)
|
Grad.
(mm)
|

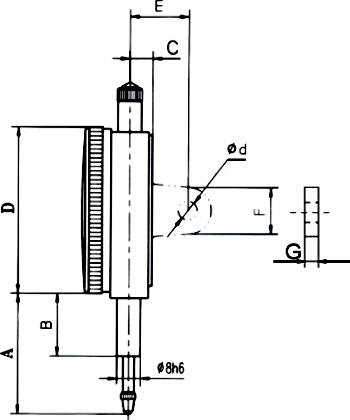

A
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
d
(mm)
|
G
(mm)
|
|
513
|
511-060
|
0-3
|
0.01
|
41.5
|
21
|
8.2
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|
513
|
511-061
|
0-5
|
0.01
|
41.5
|
21
|
8.2
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|
513
|
511-063
|
0-10
|
0.01
|
41.5
|
21
|
8.2
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|
513D
|
511-060D
|
0-3
|
0.01
|
41.5
|
21
|
8.2
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|
513D
|
511-061D
|
0-5
|
0.01
|
41.5
|
21
|
8.2
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|
513D
|
511-063D
|
0-10
|
0.01
|
41.5
|
21
|
8.2
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|

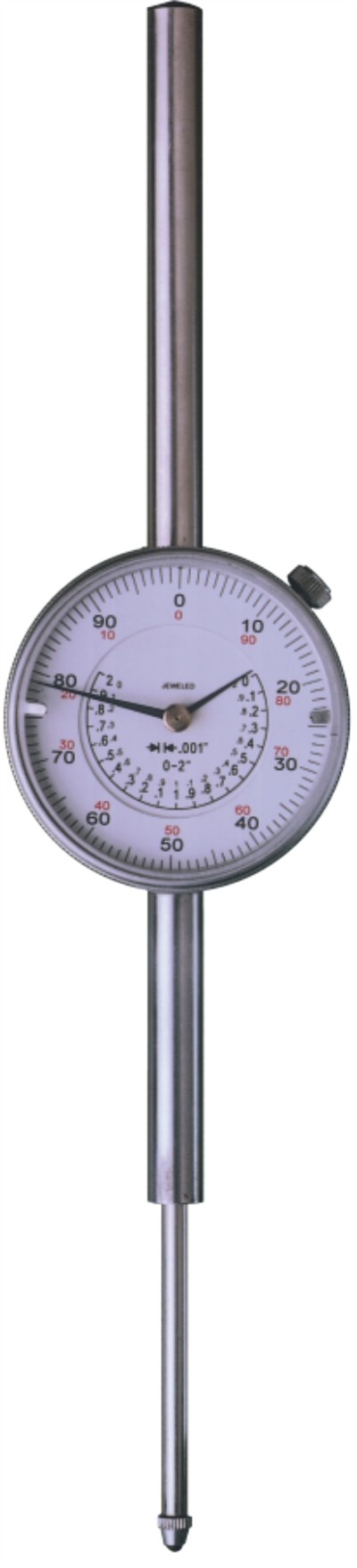

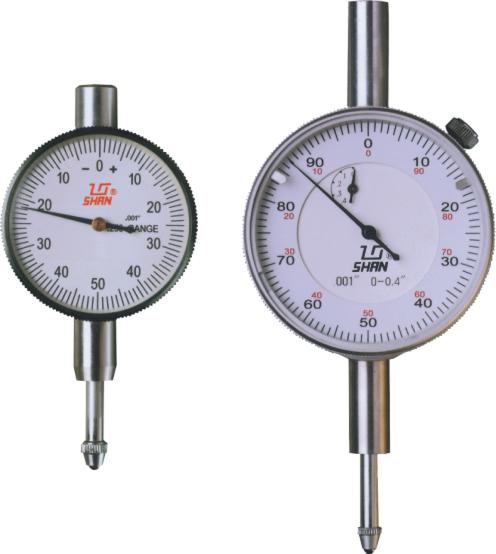

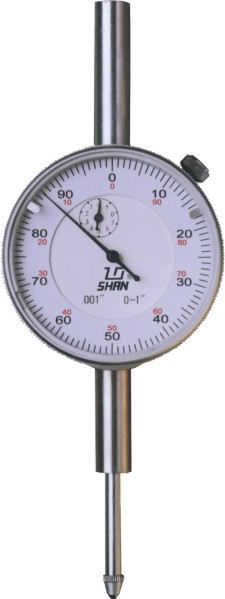

□ INCH DIAL INDICATORS
|
512-160
512-163
512-166 512-168
|
|
|
Features:
•
Adjustable
steel dial ring.
• With adjustable tolerance markers.
• Anti-dirty cap fixed on the main body of dial
indicator.
• With dial locking screw.
• 512-160 without back lug and
tolerance markers.
|
|
Item No.
|
Range
(inch)
|
Grad.
(inch)
|

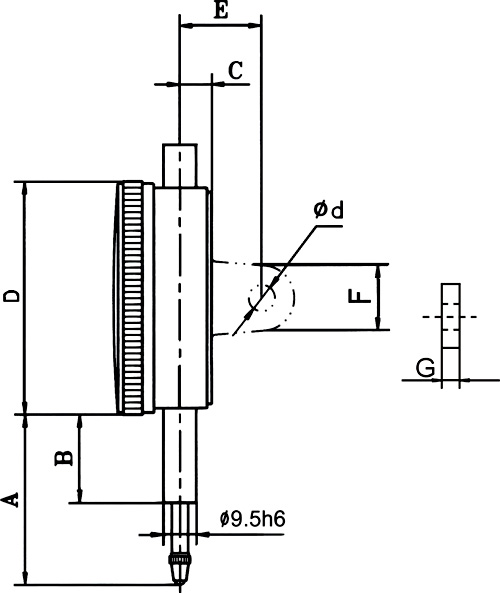

A
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
d
(mm)
|
G
(mm)
|
|
512-160
|
0-0.25"
|
0.001
|
33
|
14
|
7.5
|
Ф42.5
|
1
|
1
|
1
|
1
|
|
512-163
|
0-0.4"
|
0.001
|
41.5
|
21.5
|
8
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|
512-166
|
0-1"
|
0.001
|
60
|
24
|
8
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|
512-168
|
0-2"
|
0.001
|
113
|
53
|
8
|
Ф57
|
20
|
18
|
6.5/6.35
|
5
|
|
|
